MGB – ridgid Endoscopes (not available in EU)

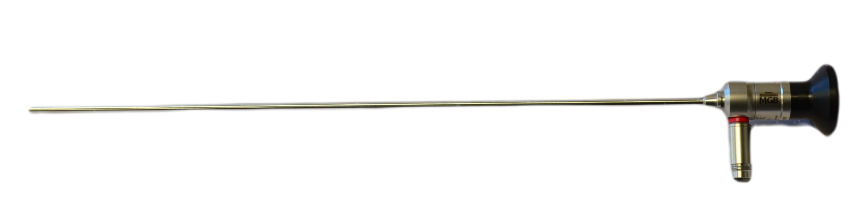

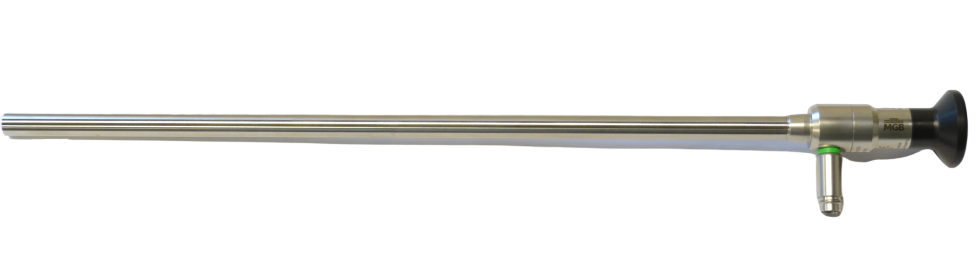

Laparoscope ø10 mm
| Article No. | 429-60200 | 429-61200 |
|---|---|---|
| Line of sight | 0′ | 30′ |
| Diameter | 10 mm | |
| Working Lenght | 300 mm | |
| Resolution | UHD | |

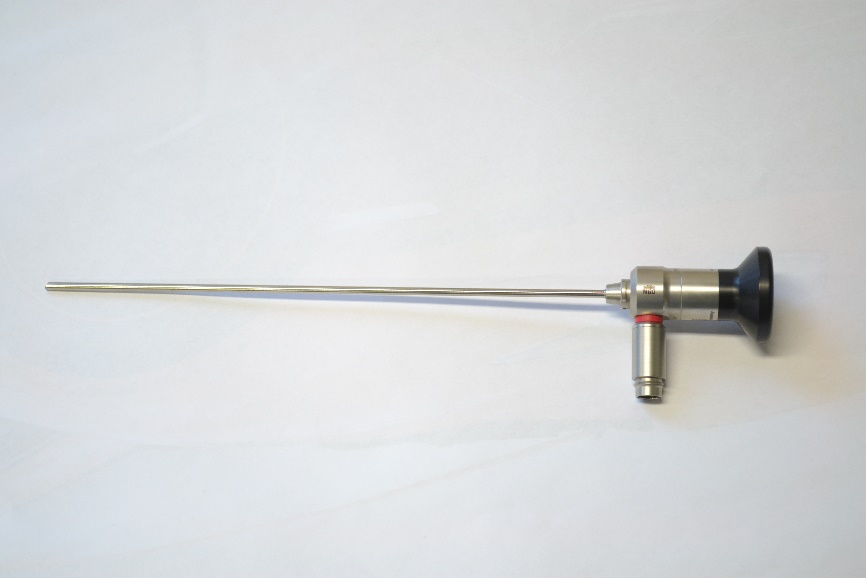

Laparoscope ø5 mm
| Article No. | 429-67050 | 429-68050 |
|---|---|---|
| Line of sight | 0′ | 30′ |
| Diameter | 5 mm | |
| Working Lenght | 300 mm | |
| Resolution | UHD | |

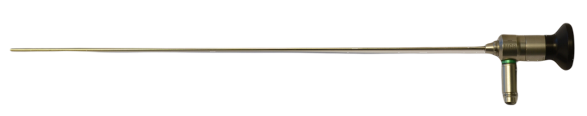

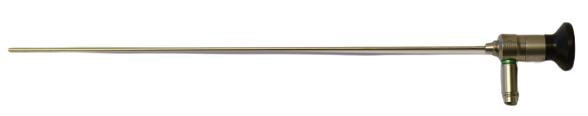

Laparoscope ø2,9 mm
| Article No. | 429-63000 | 429-64000 |
|---|---|---|
| Line of sight | 0′ | 30′ |
| Diameter | 2,9 mm | |
| Working Lenght | 300 mm | |
| Resolution | SD | |
Hysteroscope ø4 mm
| Article No. | 426-19500 | 426-19600 |
|---|---|---|
| Line of sight | 30′ | 30′ |
| Angle of view | normal | Wide angle |
| Diameter | 4 mm | |
| Working Lenght | 300 mm | |
| Resolution | SD | |
Hysteroscope ø2,9 mm
| Article No. | 426-29000 | |
|---|---|---|
| Line of sight | 30° | |
| Diameter | 2,9 mm | |
| Working Lenght | 300 mm | |
| Resolution | SD | |
Cystoscope ø4 mm
| Article No. | 412-18500 | 412-21500 | 412-19500 | 412-19600 |
|---|---|---|---|---|
| Line of sight | 0° | 12° | 30° | 30° |
| Angle of view | normal | normal | normal | Wide angle |
| Diameter | 4 mm | |||
| Working Lenght | 300 mm | |||
| Resolution | SD | |||
Cystoscope ø2,9 mm
| Article No. | 412-29000 | |
|---|---|---|
| Line of sight | 30° | |
| Diameter | 2,9 mm | |
| Working Lenght | 300 mm | |
| Resolution | SD | |
Cystoscope ø2,7 mm
| Article No. | 412-28200 | |
|---|---|---|
| Line of sight | 0° | |
| Diameter | 2,7 mm | |
| Working Lenght | 180 mm | |
| Resolution | - | |

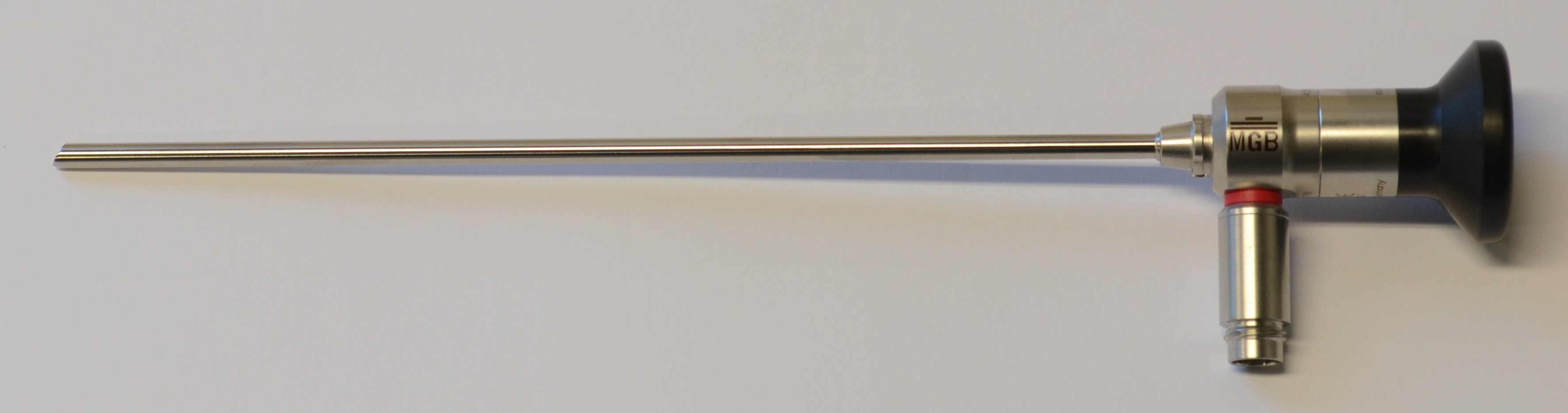

Arthroscope ø4 mm
| Article No. | 455-18300 | 455-19300 | 455-19390 |
|---|---|---|---|
| Line of sight | 0° | 30° | 30° |
| Diameter | 4 mm | ||
| Working Lenght | 175 mm | 141 mm | |
| Resolution | SD | ||

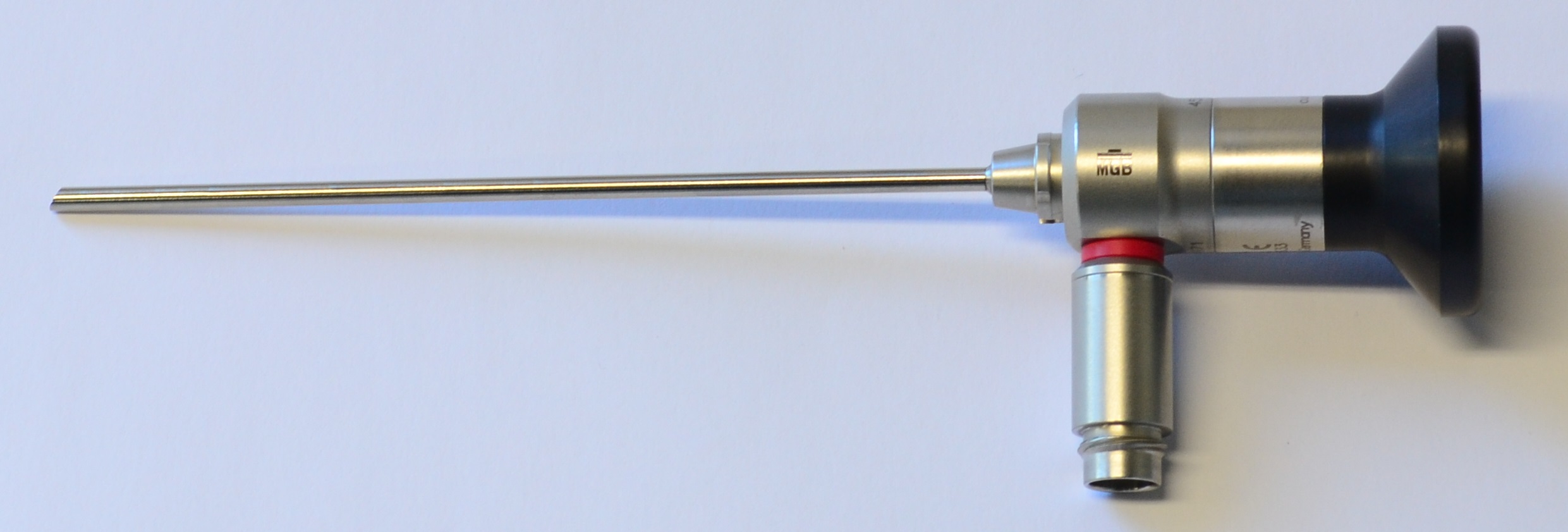

Arthroscope ø2,7 mm
| Article No. | 455-26200 | 455-28200 | 455-27200 | 455-29200 |
|---|---|---|---|---|
| Line of sight | 0° | 30° | ||
| Diameter | 2,7 mm | |||
| Working Lenght | 100 mm | 180 mm | 100 mm | 180 mm |
| Resolution | SD | |||
Bronchoscope ø4 mm
| Article No. | 441-94500 |
|---|---|
| Line of sight | 30° |
| Diameter | 4 mm |
| Working Lenght | 300 mm |
| Resolution | SD |
Bronchoscope ø2,9 mm
| Article No. | 441-95000 | 441-96000 | |
|---|---|---|---|
| Line of sight | 0° | 30° | |
| Diameter | 2,9 mm | ||
| Working Lenght | 300 mm | ||
| Resolution | SD | ||
Sinoscope ø4 mm
| Article No. | 461-18300 | 461-19300 | |
|---|---|---|---|
| Line of sight | 0° | 30° | |
| Diameter | 4 mm | ||
| Working Lenght | 175 mm | ||
| Resolution | SD | ||
Sinoscope ø2,7 mm
| Article No. | 461-28300 | 461-29300 | |
|---|---|---|---|
| Line of sight | 0° | 30° | |
| Diameter | 2,7 mm | ||
| Working Lenght | 180 mm | ||
| Resolution | SD | ||
Vathin – Single-Use Endoscopes
NO CROSS CONTAMINATION
As H-SteriScope™ I series are our single-use bronchoscopes, it elimi nate the risk of cross-contamination and ensure the safety of patients.
Cost Effective
H-SteriScope™ I do not have repair and reprocessing cost, which highly reduce the use cost of scopes.
Rotation
The insertion tube can be rotated left or right up to 90° by simply turning a ring on the control' section of the scope. This improve ease of operator control.
WIDER ANGULATION
Up and down angulation ranges of 210° support smoother insertion into the lobe bronchi. Moreover the bending has high endurable ability, which is the same with resuable ones.

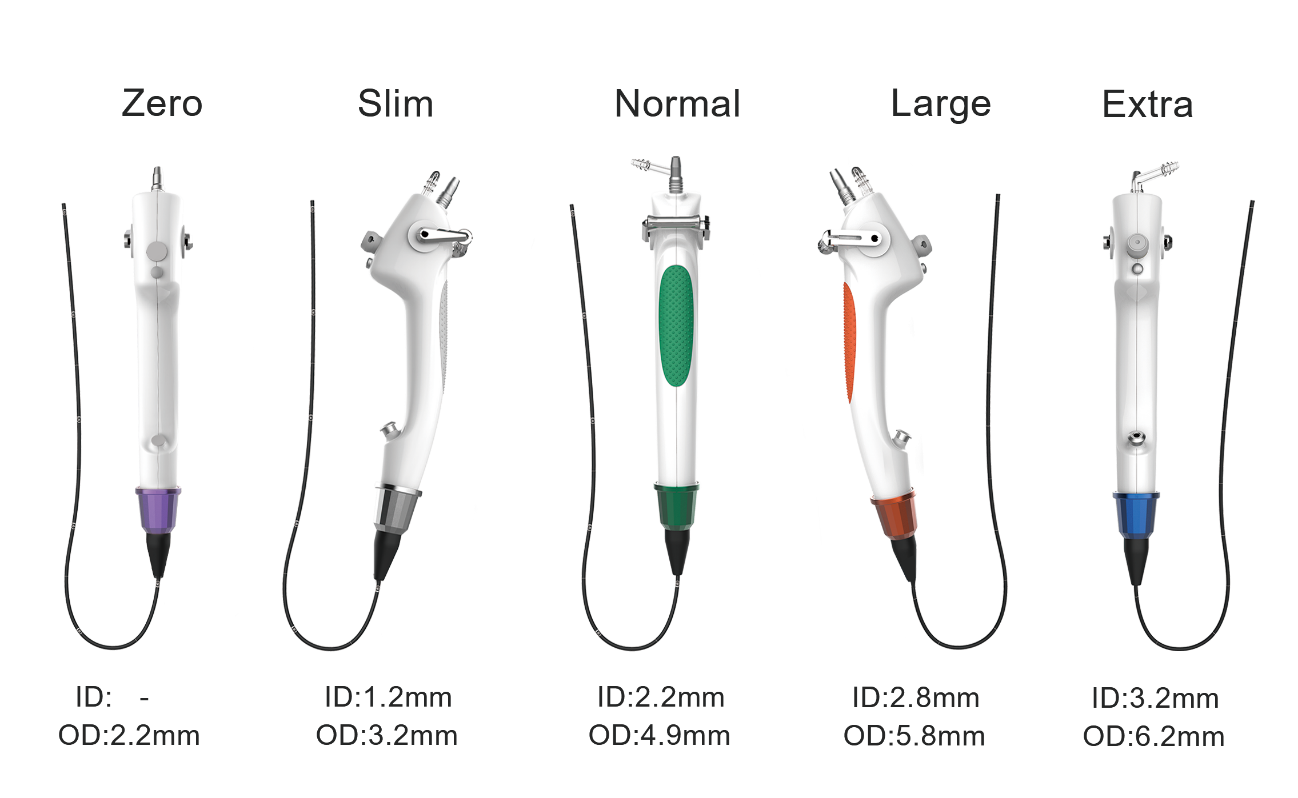

| Name | Zero | Slim | Normal | Large | Extra |
|---|---|---|---|---|---|
| Model | BCV1-01/02 | BCV1-C1/C2 | BCV1-M1/M2 | BCV1-S1/S2 | BCV1-W1/W2 |
| Bending Section | U210°/D210° | ||||
| Max OD | 2,5 mm | 3,2 mm | 4,9 mm | 5,8 mm | 6,2 mm |
| Distal end Diameter | 2,2 mm | 3,2 mm | 4,9 mm | 5,8 mm | 6,2 mm |
| Min ID | 0 mm | 1,2 mm | 2,2 mm | 2,8 mm | 3,2 mm |
| Working Lenght | 700 mm | ||||
| Field of View | 110° | ||||
| Depth of view | 3 mm to 100 mm | ||||
| Illumination method | LED | ||||
| Suction Connector | 7 mm | ||||
| Method of Sterilization | ETO | ||||

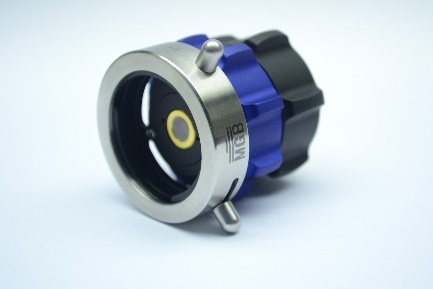

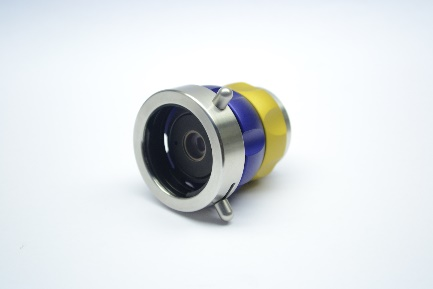

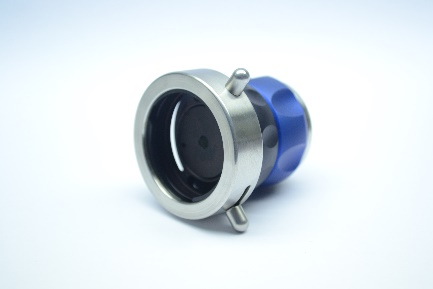

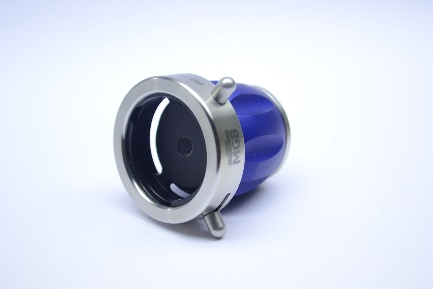

Lenses
HD Video
| Article No. | 470-23450 | 470-24450 |
|---|---|---|
| Focal Lenght | 18 mm | 25 mm |
| Dimensions | 45,7 mm x 41,8 mm | |
| Weight | 92 g | |
| Cameraconnection | C-Mount (1-32 UN 2A) | |
| Endoscope connection | Standard eyepiece | |
SD Video
| Article No. | 470-14400 | 470-23400 | 470-27400 | 470-24400 | 470-25400 | 470-26400 |
|---|---|---|---|---|---|---|
| Focal Lenght | 14 mm | 18 mm | 22 mm | 25 mm | 30 mm | 40 mm |
| Dimensions | 45,7 mm x 41,8 mm | |||||
| Weight | 92 g | |||||
| Cameraconnection | C-Mount (1-32 UN 2A) | |||||
| Endoscope connection | Standard eyepiece | |||||
HD Zoom Video
| Article No. | 470-28050 |
|---|---|
| Focal Lenght | 16 mm – 32 mm |
| Parfocal | Yes |
| Dimensions | 45,7 mm x 41,8 mm |
| Weight | 120 g |
| Cameraconnection | C-Mount (1-32 UN 2A) |
| Endoscope connection | Standard eyepiece |
SD Zoom Video
| Article No. | 470-28000 | 470-28010 |
|---|---|---|
| Focal Lenght | 16 mm – 34 mm | |
| Dimensions | 42,93 mm x 54,8 mm | 45,7 mm x 41,8 mm |
| Weight | ~ 98 g | ~ 116 g |
| Cameraconnection | C-Mount (1-32 UN 2A) | |
| Endoscope connection | Standard eyepiece | |
Monitors

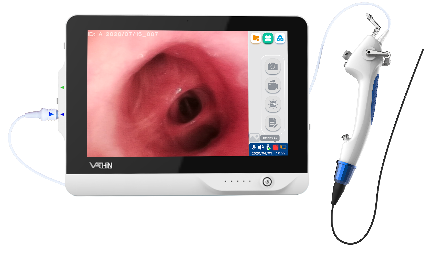

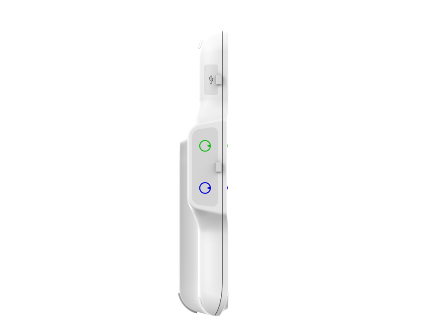

A tablet sized Digital Video Monitor
Data
| Display: |
Resolution: 1280 x 800 Type: Touchscreen, Colour LCD Size: 12.8 " Orientation: Portrait and Landscape (Auto) Adjustment: Contrast, Sharpness and Brightness |
|---|---|
| Battery: | 9000 mAh Lithium-ion (duration over 6 h) |
| Konnections: |
2 x USB 3.0 Video out: HDMI (1920 x 1080p, 60 fps) |
| Recording: |
Memory: 64 GB Video: Duration over 6 h (MPEG-4 format) Image: 1280 x 800 (PNG format) |
| Playback: | Picture and Video |
| Other: |
Speaker Dimensions: 310 mm x 230 mm x 39 mm (W x H x T) Weight 2.14 kg |
| Power: |
Input Power: 15 V DC, max. 4.2 A Power Supply: 100 - 240 V AC, 50 - 60 Hz, max. 1.4 A |
